Objective of the Lab:
- To familiarize with basic Electronics components, equipment, and their experiments.
- To analyse frequency response of Amplifiers and Diodes.
| Sr. No. | Name of Equipment | Image | Brief Description (key feature) of each Equipment |
|---|---|---|---|

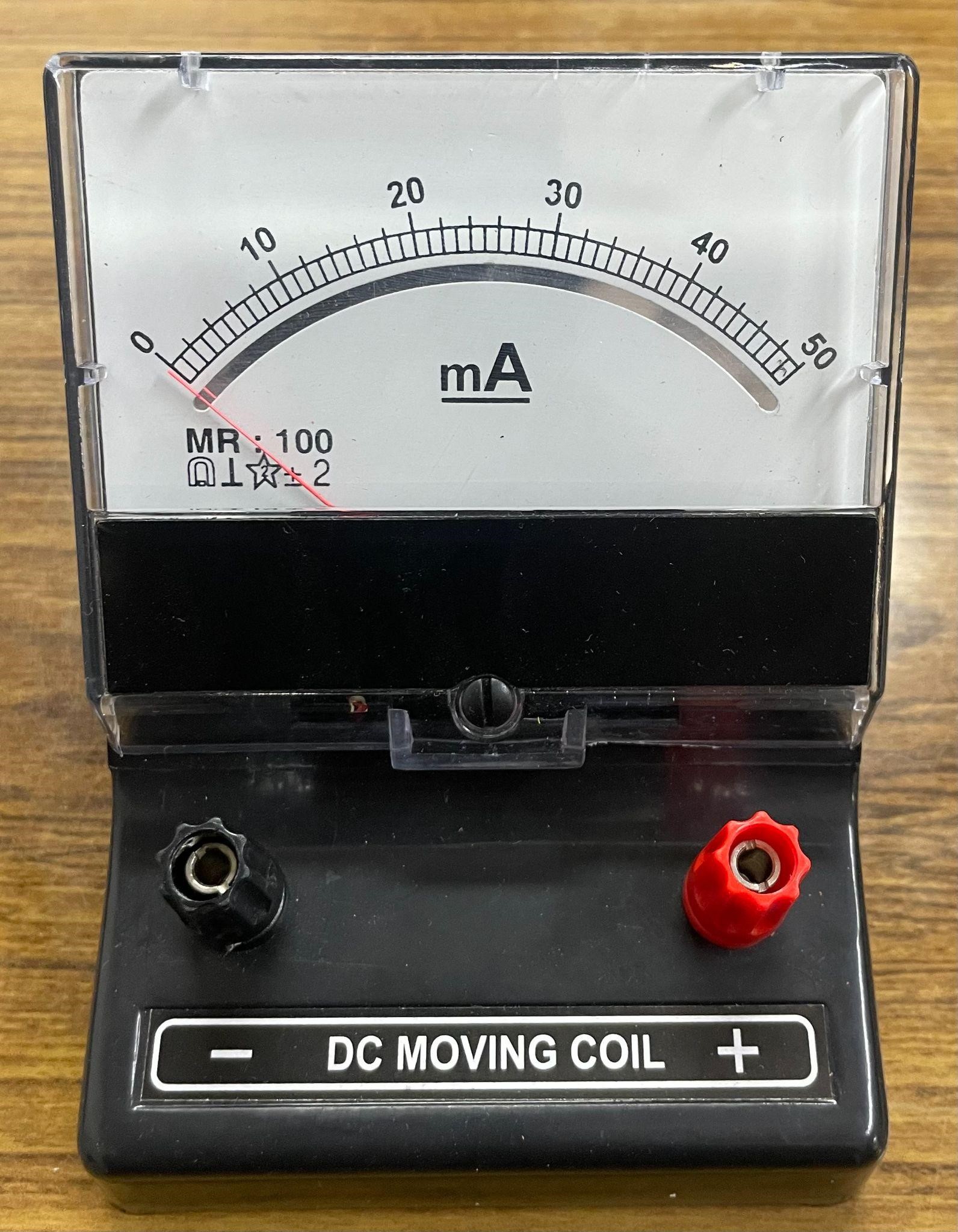

| 1. | mA meter |  |
A milliampere meter (commonly abbreviated as mA meter) is an electrical measuring instrument used to measure small electric currents in the range of milliamperes (mA). It is essentially a type of ammeter, specifically designed for low-current applications. It can measure current from 0 milliamperes (mA) up to a maximum of 250 milliamperes (mA). |
| 2. | Regulated Dual DC Power Supply |  |
A Regulated Dual DC Power Supply is an electronic device that provides two independent and stable DC voltage outputs with the ability to regulate the output voltage and current. It The power supply can provide a continuously adjustable output voltage in the range of 0 to 30 volts DC for each channel. |
| 3. | DC Micro Ammeter |  |
A DC Micro Ammeter is a precision measuring instrument designed to detect and measure small electrical currents in the microampere (µA) range in direct current (DC) circuits. Measures direct current (DC) in the range of 0 to 50 microamperes (µA). |
| 4. | Experimental Kit |  |
An Experimental Kit for Integrator and Differentiator Using Op-Amp is a practical learning tool designed to study and experiment with the principles of integration and differentiation in electronic circuits using operational amplifiers (op-amps). |

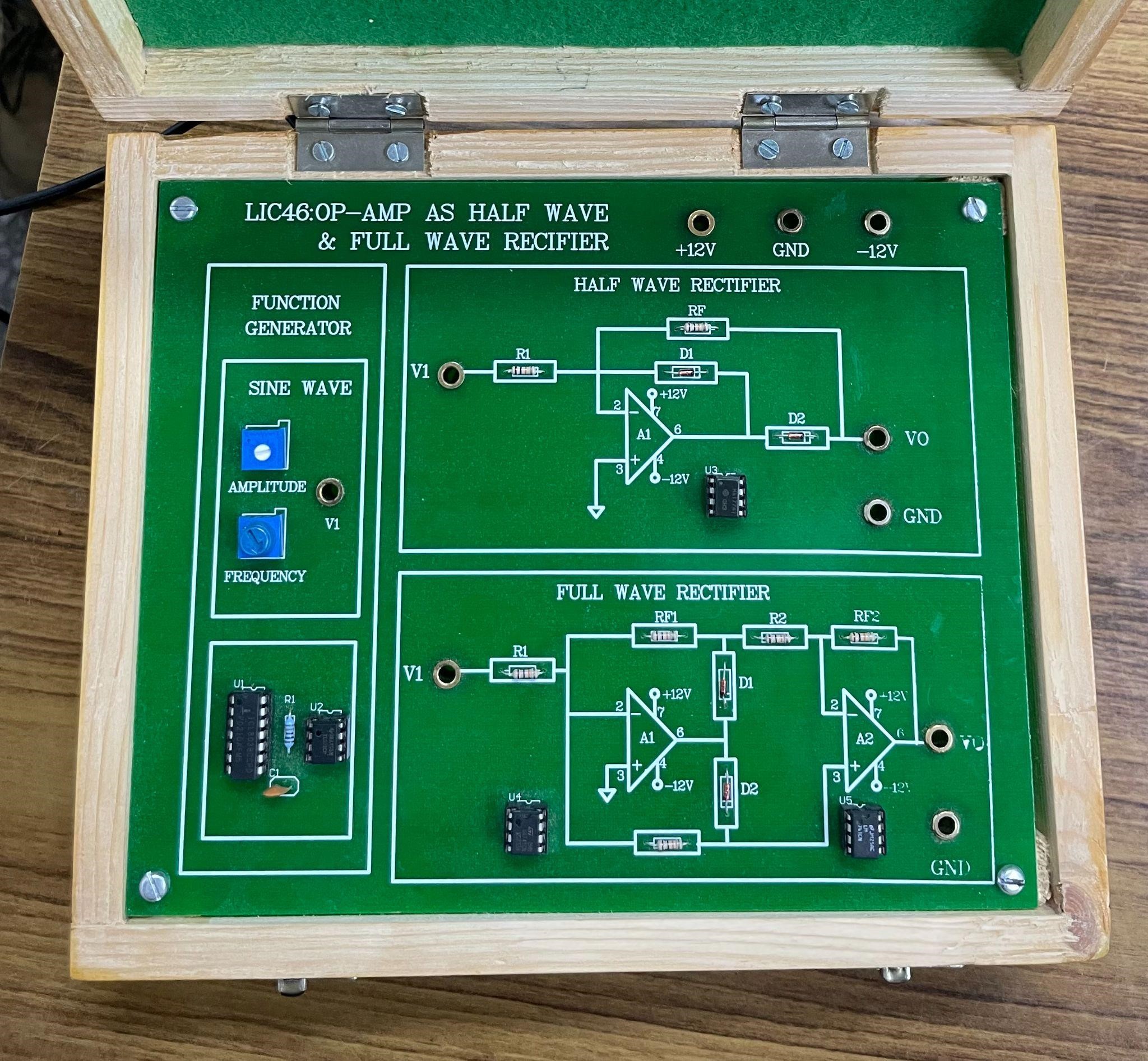

| 5. | Experimental Kit |  |
An Experimental Kit for Half-Wave and Full-Wave Rectification Using Op-Amps is a teaching and learning tool designed to study and experiment with the principles of rectification (converting AC signals to DC) using operational amplifiers. |
| 6. | Digital storage oscilloscope, |  |
A Digital Storage Oscilloscope (DSO) with 200 MHz bandwidth, is a high-performance electronic test instrument used for capturing, analyzing, and visualizing electrical signals. With dual-channel capability, this oscilloscope can measure and display two signals simultaneously |
| 7. | Handhold Multimeter |  |
A Handheld Multimeter with 3.5 digits RMS/True RMS measurement capability is a portable, compact test instrument designed for measuring a variety of electrical parameters such as voltage, current, resistance, and sometimes capacitance or frequency |

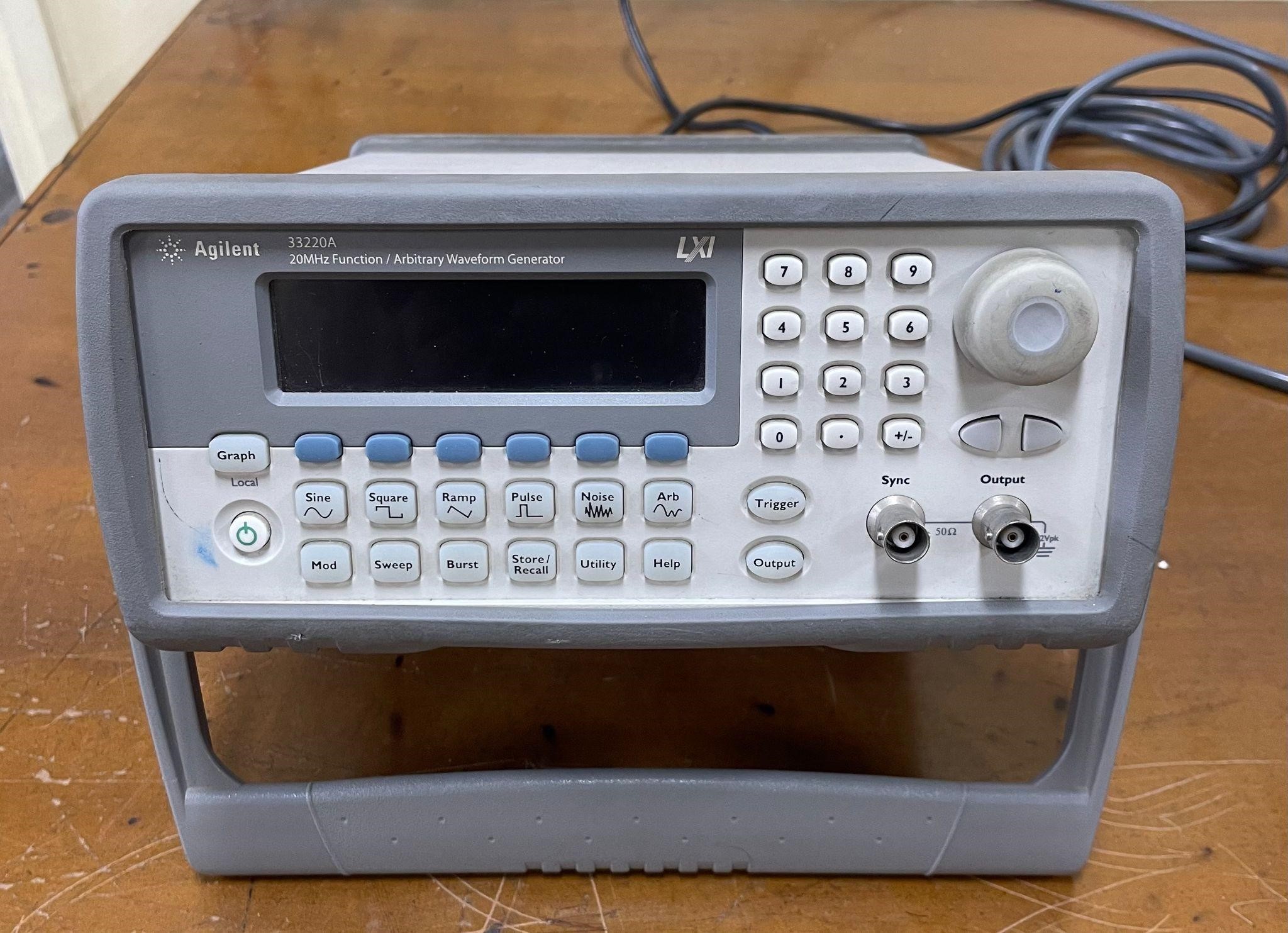

| 8. | Programmable function Generator |  |
Programmable Function Generator with a 20 MHz frequency range and Single is a versatile and precise signal source used to generate a wide variety of waveforms for testing, simulation, and prototyping in electronics, communications, and engineering applications. |
| 9. | Oscilloscope |  |
A 4-Channel, 100 MHz Digital Storage Oscilloscope (DSO) is a high-performance electronic test instrument used to capture, display, and analyze electrical waveforms. |
| 10. | OrCAD P Spice (10 users) |  |
PSpice is a widely used simulation software for analog and mixed-signal circuits. It is based on the SPICE (Simulation Program). |
